Cool Incubator48
Overview

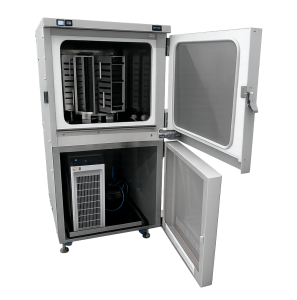

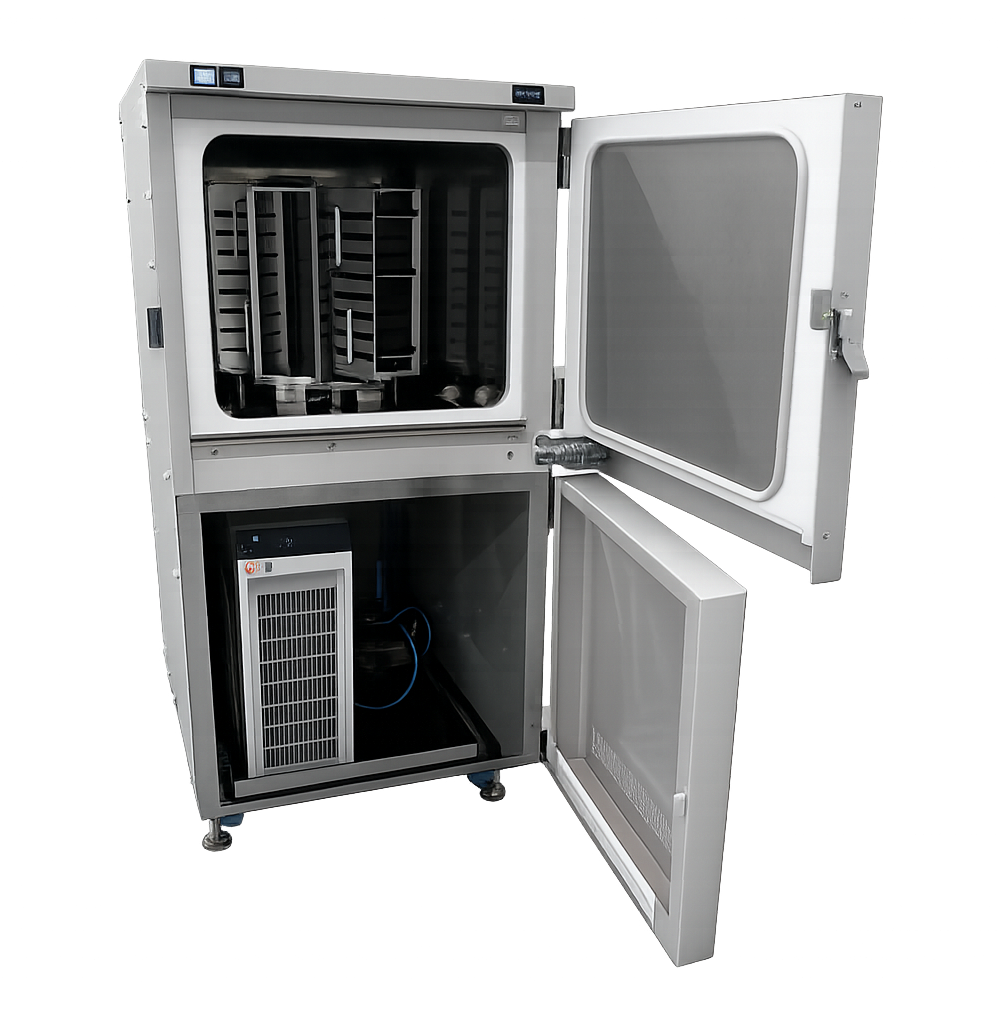

An automated refrigerated storage system equipped with a transfer robot.
- Capable of storing up to 48 plates of temperature-sensitive samples, antibodies, culture media, and other materials
- Minimizes the risk of malfunction by isolating the transfer robot and sensors from the condensation-prone storage chamber
- The interior becomes completely flat when the turntable is removed, making cleaning easy
Specificatins
| Product Number | iPIC-0806-CHL-01 |
|---|---|
| External Dimensions (W × D × H) (mm) *Excluding protrusions |
W 660 mm ｘ D 1,102 mm ｘ H 1,426 mm |
| Weight (approx.) | 260 kg |
| Power Requirements | 100V 11A |
| Compatible Vessel Type | SBS standard plate |
| Storage Capacity | 48 ea. (Maximum overall height: 26 mm. Optional support for deep well plates is available. Please contact us for further details.) |
| Templature control | Dependent on the chiller (natural refrigerant used as standard specification). |
| Control | include a laptop and dedicated software |
Resources
Option List
- Dish/Plate Transfer Table (for integration)
- Side Loding
For other requests, please contact us.
*The contents may be changed without notice.
